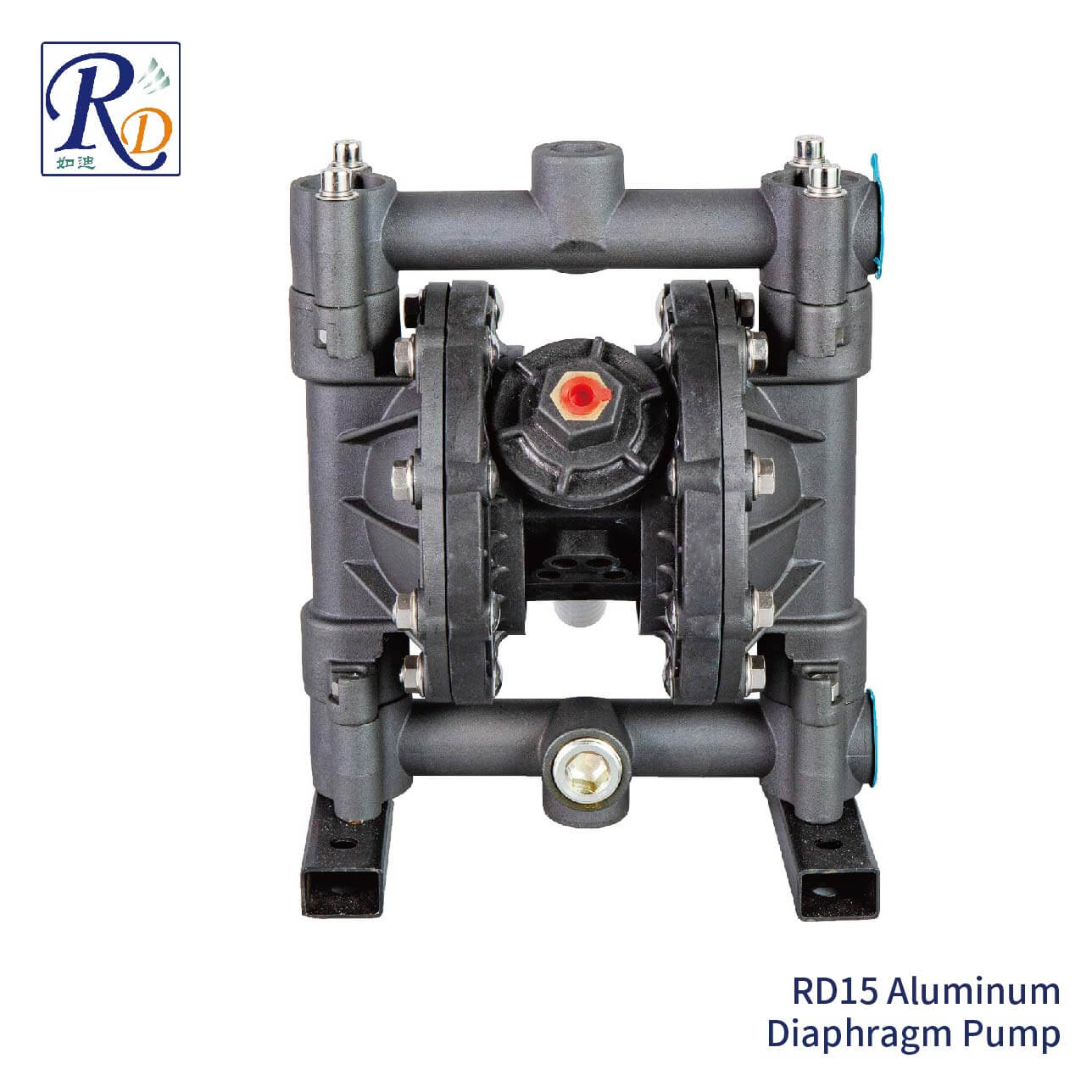

Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low
Pressure
How does a Aluminum diaphragm pump work?
The compressed air is shifted from one chamber to the other by a
linked shaft that allows the chambers to move simultaneously. This
back-and-forth motion forces liquid out of one chamber and into the
discharge piping while the other chamber is being filled with
liquid at the same time.
Outline Dimension Drawing
| Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
| Max Capacity | 15 gpm ( 57lpm ) |
| Max Reciprocating Speed | 400 cpm |
| Power | Pnuematic |
| Max Permitted Grain | 3/32 in ( 2.5mm ) |
| Advantages: | Explosion-proof |
| Air Inlet Size | 1/4 in.npt (f) |
| Air Outlet Size | 3/8 in.npt (f) |
| Fluid Inlet Size | 1/2 in. |
| Fluid Outlet Size | 1/2 in. |
| Net Weight | 4.6kg |
Packing & Shipping:
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town,
Jinshan District of Shanghai, with 2 production bases and 3
branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit
Company title in consecutive years
We have strong capability of design, innovation, precision
production and tight cooperation with Shanghai universities
Industrial and Chemical
The selection of available housing and elastomer materials make our
pumps adaptable for most highly aggressive or corrosive media. RV
pumps’outstanding chemical resistance and robust design contribute
to a reliable and safe operation.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard
operation is 1 year,except wearable parts.
5. Q: The use of air diaphragm pump have?
A: air diaphragm pump can suck the peanut, pickles, tomato slurry,
red sausage, chocolate, hops and syrup etc.
Air diaphragm pump can suck the paint, pigment, glue and adhesive
etc.
Air diaphragm pump can suck various glazed slurries of tile,
porcelain, brick and chinaware etc.
Air diaphragm pump can suck various toxin and flammable or
volatility liquid etc.
Air diaphragm pump can suck various strong acid, alkali and
corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air diaphragm pump have CE certificate, quality assured, can
accept OEM, provide various personalized needs.
